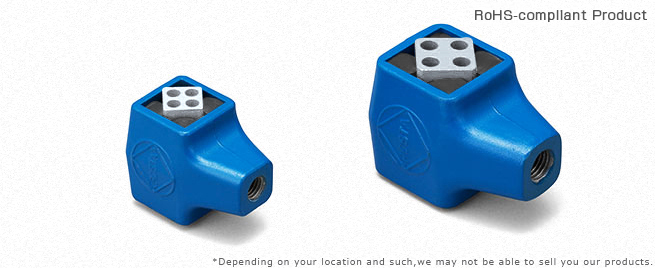

RST Models

RST Models

ダウンロード

RST Models Specifications

RST Models
- [Specifications]
- [Dimensions]

RST Models

[Specifications]

Model	Max. allowable acceleration force F ［N］	Allowable frequency at ±5°［min^-1］	Mass ［kg］
RST-18-R,L	400	600	0.2
RST-27-R,L	1000	560	0.4
RST-38-R,L	2000	530	1.1
RST-45-R,L	3500	500	1.8
RST-50-R,L	6000	470	5.5
RST-60-N-R,L	13000	440	15.6
RST-80-N-R	27000	380	36.7

*The allowable frequency at ±5°［min^-1］ is that at an oscillation angle of ±5°.

*The allowable torsional angle is ±5°.

*The RST-60-N-R, RST-60-N-L and RST-80-N-R are made to order.

[Dimensions]

Unit[mm]

Model	A	E	H	J	K	L	L1	N	T	M
RST-18-R	39	12±0.3	45	20	31.5	50	55　⁰_-0.3	22	φ6^+0.5₀	M12
RST-18-L	39	12±0.3	45	20	31.5	50	55　⁰_-0.3	22	φ6^+0.5₀	M12
RST-27-R	54	20±0.4	60	27	40.5	60	65　⁰_-0.3	28	φ8^+0.5₀	M16
RST-27-L	54	20±0.4	60	27	40.5	60	65　⁰_-0.3	28	φ8^+0.5₀	M16
RST-38-R	74	25±0.4	80	37	53	80	90　⁰_-0.3	42	φ10^+0.5₀	M20
RST-38-L	74	25±0.4	80	37	53	80	90　⁰_-0.3	42	φ10^+0.5₀	M20
RST-45-R	89	35±0.5	100	44	67	100	110　⁰_-0.3	48	φ12^+0.5₀	M24
RST-45-L	89	35±0.5	100	44	67	100	110　⁰_-0.3	48	φ12^+0.5₀	M24
RST-50-R	93	40±0.5	105	47	69.5	120	130　⁰_-0.3	60	M12×40	M36
RST-50-L	93	40±0.5	105	47	69.5	120	130　⁰_-0.3	60	M12×40	M36
RST-60-N-R	117	45	130	59	85	200	210　±0.2	80	M16	M42
RST-60-N-L	117	45	130	59	85	200	210　±0.2	80	M16	M42
RST-80-N-R	150	60	160	77	100	300	310　±0.2	90	M20	M52
