SFS 모델

본체 재질에 스틸을 사용한 판 스프링 타입의 커플링으로, 서보플렉스의 베이직 타입입니다. 고강성의 싱글 엘레멘트 타입과 스페이서를 통해 엘레멘트를 더블 배치하여 유연성을 갖춘 더블 엘레멘트 타입, 더블 엘레멘트에 중간 플랜지를 조합한 플로팅 샤프트 타입을 제공합니다.

PDF・CAD데이터 다운로드는 여기로

  • 카탈로그·기술자료 다운로드
  • 취급설명서 다운로드
  • 2D CAD 다운로드
  • 3D CAD 다운로드


여타 제품을 찾으시는 분께

제품 정보

PDF 다운로드

폭넓은 라인업

고강성 싱글 엘레멘트 타입의 SFS S와 스페이서를 통해 엘레멘트를 더블 배치하여 유연성을 갖춘 더블 엘레멘트 타입의 SFS W, 그리고 긴 축간 거리에 대응하는 SFS G를 제공합니다.

무전해 니켈 도금 제품도 라인업

밑구멍(Pilot hole) 제품이나 키 및 고정나사 제품은 표면처리에 무전해 니켈 도금을 선택할 수 있습니다.

고정도 부착

마찰 체결을 채용한 SFS S/W/G- □ M- □ M 타입은 슬리브가 플랜지부 안쪽에 삽입되는 설계이므로 슬리브 바깥지름을 가이드로 삼아 고정도의 부착을 실행할 수 있습니다.

부품 단위에서의 조립이 가능

부품 단위로 제공하므로, 조립된 상태에서는 부착할 수 없는 설계에서도 문제없이 사용할 수 있습니다. 또한 고객의 요청에 따라 조립 출하도 가능합니다. 또한 각 플랜지는 부착 치수의 호환성이 있으므로, 한쪽 플랜지만 밑구멍(Pilot hole) 제품이거나 키 및 고정나사 타입의 플랜지와 고정도 마찰 체결 플랜지를 조합하여 주문하시는 것도 가능합니다.

라인업

구조와 재질

SFS S

SFS S

사양 보기

SFS S-□M-□M

SFS S-□M-□M

사양 보기

SFS S-□M-□C

SFS S-□M-□C

사양 보기

SFS S C

SFS S C

사양 보기

SFS W

SFS W

사양 보기

SFS G

SFS G

사양 보기

SFS-□S 타입

【사양】

형식허용토크［N・m］허용 오차최고 회전 속도［min-1］비틀림 스프링 정수［N・m/rad］축 방향 스프링 정수［N/mm］관성 모멘트［kg・m2］질량［kg］
편각［°］축 방향［mm］
SFS-05S201±0.62500016000430.11×10-30.30
SFS-06S401±0.82000029000450.30×10-30.50
SFS-08S801±1.01700083000600.87×10-31.00
SFS-09S1801±1.2150001700001221.60×10-31.40
SFS-10S2501±1.4130002500001602.60×10-32.10
SFS-12S4501±1.6110004300001976.50×10-33.40
SFS-14S8001±1.895007800003139.90×10-34.90

※최고 회전 속도는 동적 균형을 고려하지 않았습니다 .

※관성 모멘트 및 질량은 최대 구멍 지름일 때의 값입니다 .

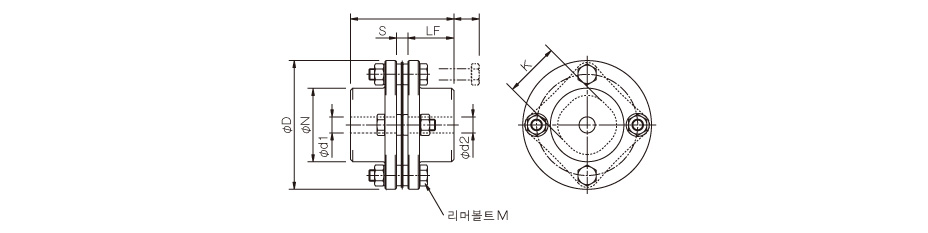

【치수】

단위 [mm]
형식d1・d2DNLLFSFKM
예비구멍최소최대
SFS-05S782056324520511244-M5×22
SFS-06S782568405625610304-M6×25
SFS-08S10113582546630611384-M6×29
SFS-09S10113894586830821424-M8×36
SFS-10S1516421046880351016484-M8×36
SFS-12S1819501267891401123544-M10×45
SFS-14S20226014488102451231614-M12×54

※예비구멍은 드릴 구멍입니다 .

※리머볼트 M 의 호칭은 수량 - 나사의 호칭×호칭길이입니다 .

【표준 구멍 지름】

형식표준 구멍 지름　d1・d2［mm］
891011121415161718192022242528303235384042454850555660
SFS-05S●●●●●●●●●●●●
SFS-06S●●●●●●●●●●●●●●●
SFS-08S●●●●●●●●●●●●●●●●
SFS-09S●●●●●●●●●●●●●●●●●
SFS-10S●●●●●●●●●●●●●●●
SFS-12S●●●●●●●●●●●●●●●
SFS-14S●●●●●●●●●●●●●●●●

※● 표시가 있는 난의 내경은 표준 내경으로 대응하고 있습니다 . 자세한 내용은 표준 구멍 가공 규격을 참조하십시오 .

【표준 구멍 가공 규격】

단위 [mm]
구 JIS(2 종 ) 규격 대응신 JIS(H9) 규격 대응신 JIS(JS9) 규격 대응
구멍 지름 호칭구멍 지름（d1・d2）키홈 폭（W1･W2）키홈 높이（T1･T2）고정나사 구멍（M）구멍 지름 호칭구멍 지름（d1・d2）키홈 폭（W1･W2）키홈 높이（T1･T2）고정나사 구멍（M）구멍 지름 호칭구멍 지름（d1・d2）키홈 폭（W1･W2）키홈 높이（T1･T2）고정나사 구멍（M）
공차 H7,H8공차 E9－－ 공차 H7,H8공차 H9－－ 공차 H7,H8공차 JS9－－
88+0.0220－－2-M48H8+0.02203+0.02509.4+0.302-M48J8+0.02203±0.01259.4+0.302-M4
99+0.0220－－2-M49H9+0.02203+0.025010.4+0.302-M49J9+0.02203±0.012510.4+0.302-M4
1010+0.0220－－2-M410H10+0.02203+0.025011.4+0.302-M410J10+0.02203±0.012511.4+0.302-M4
1111+0.0180－－2-M411H11+0.01804+0.030012.8+0.302-M411J11+0.01804±0.015012.8+0.302-M4
1212+0.01804+0.050+0.02013.5+0.302-M412H12+0.01804+0.030013.8+0.302-M412J12+0.01804±0.015013.8+0.302-M4
1414+0.01805+0.050+0.02016+0.302-M414H14+0.01805+0.030016.3+0.302-M414J14+0.01805±0.015016.3+0.302-M4
1515+0.01805+0.050+0.02017+0.302-M415H15+0.01805+0.030017.3+0.302-M415J15+0.01805±0.015017.3+0.302-M4
1616+0.01805+0.050+0.02018+0.302-M416H16+0.01805+0.030018.3+0.302-M416J16+0.01805±0.015018.3+0.302-M4
1717+0.01805+0.050+0.02019+0.302-M417H17+0.01805+0.030019.3+0.302-M417J17+0.01805±0.015019.3+0.302-M4
1818+0.01805+0.050+0.02020+0.302-M418H18+0.01806+0.030020.8+0.302-M518J18+0.01806±0.015020.8+0.302-M5
1919+0.02105+0.050+0.02021+0.302-M419H19+0.02106+0.030021.8+0.302-M519J19+0.02106±0.015021.8+0.302-M5
2020+0.02105+0.050+0.02022+0.302-M420H20+0.02106+0.030022.8+0.302-M520J20+0.02106±0.015022.8+0.302-M5
2222+0.02107+0.061+0.02525+0.302-M622H22+0.02106+0.030024.8+0.302-M522J22+0.02106±0.015024.8+0.302-M5
2424+0.02107+0.061+0.02527+0.302-M624H24+0.02108+0.036027.3+0.302-M624J24+0.02108±0.018027.3+0.302-M6
2525+0.02107+0.061+0.02528+0.302-M625H25+0.02108+0.036028.3+0.302-M625J25+0.02108±0.018028.3+0.302-M6
2828+0.02107+0.061+0.02531+0.302-M628H28+0.02108+0.036031.3+0.302-M628J28+0.02108±0.018031.3+0.302-M6
3030+0.02107+0.061+0.02533+0.302-M630H30+0.02108+0.036033.3+0.302-M630J30+0.02108±0.018033.3+0.302-M6
3232+0.025010+0.061+0.02535.5+0.302-M832H32+0.025010+0.036035.3+0.302-M832J32+0.025010±0.018035.3+0.302-M8
3535+0.025010+0.061+0.02538.5+0.302-M835H35+0.025010+0.036038.3+0.302-M835J35+0.025010±0.018038.3+0.302-M8
3838+0.025010+0.061+0.02541.5+0.302-M838H38+0.025010+0.036041.3+0.302-M838J38+0.025010±0.018041.3+0.302-M8
4040+0.025010+0.061+0.02543.5+0.302-M840H40+0.025012+0.043043.3+0.302-M840J40+0.025012±0.021543.3+0.302-M8
4242+0.025012+0.075+0.03245.5+0.302-M842H42+0.025012+0.043045.3+0.302-M842J42+0.025012±0.021545.3+0.302-M8
4545+0.025012+0.075+0.03248.5+0.302-M845H45+0.025014+0.043048.8+0.302-M1045J45+0.025014±0.021548.8+0.302-M10
4848+0.025012+0.075+0.03251.5+0.302-M848H48+0.025014+0.043051.8+0.302-M1048J48+0.025014±0.021551.8+0.302-M10
5050+0.025012+0.075+0.03253.5+0.302-M850H50+0.025014+0.043053.8+0.302-M1050J50+0.025014±0.021553.8+0.302-M10
5555+0.030015+0.075+0.03260+0.302-M1055H55+0.030016+0.043059.3+0.302-M1055J55+0.030016±0.021559.3+0.302-M10
5656+0.030015+0.075+0.03261+0.302-M1056H56+0.030016+0.043060.3+0.302-M1056J56+0.030016±0.021560.3+0.302-M10
6060+0.030015+0.075+0.03265+0.302-M1060H60+0.030018+0.043064.4+0.302-M1060J60+0.030018±0.021564.4+0.302-M10

JIS 신 규격 P9 JIS B 1301 1996 대응 모터 규격 JIS C 4210 2001 대응
구멍
지름
호칭		 구멍 지름（d1・d2） 키홈 폭（W1･W2） 키홈 높이（T1･T2） 고정나사 구멍（M） 구멍
지름
호칭		 구멍 지름（d1・d2） 키홈 폭（W1･W2） 키홈 높이（T1･T2） 고정나사 구멍（M）
공차 H7，H8 공차 P9 － － 공차 G7，F7 공차 H9 － －
8P 8 +0.0220 3－0.006－0.031 9.4+0.30 2-M4 - - - - -
9P 9 +0.0220 3－0.006－0.031 10.4+0.30 2-M4 - - - - -
10P 10 +0.0220 3－0.006－0.031 11.4+0.30 2-M4 - - - - -
11P 11+0.0180 4－0.012－0.042 12.8+0.30 2-M4 - - - - -
12P 12 +0.0180 4－0.012－0.042 13.8+0.30 2-M4 - - - - -
14P 14+0.0180 5－0.012－0.042 16.3+0.30 2-M4 14N 14+0.024+0.006 5+0.0300 16.3+0.30 2-M4
15P 15+0.0180 5－0.012－0.042 17.3+0.30 2-M4 - - - - -
16P 16+0.0180 5－0.012－0.042 18.3+0.30 2-M4 - - - - -
17P 17+0.0180 5－0.012－0.042 19.3+0.30 2-M4 - - - - -
18P 18+0.0180 6－0.012－0.042 20.8+0.30 2-M5 - - - - -
19P 19 +0.0210 6－0.012－0.042 21.8+0.30 2-M5 19N 19+0.028+0.007 6+0.0300 21.8+0.30 2-M5
20P 20 +0.0210 6－0.012－0.042 22.8+0.30 2-M5 - - - - -
22P 22 +0.0210 6－0.012－0.042 24.8+0.30 2-M5 - - - - -
24P 24 +0.0210 8－0.015－0.051 27.3+0.30 2-M6 24N 24+0.028+0.007 8+0.0360 27.3+0.30 2-M6
25P 25 +0.0210 8－0.015－0.051 28.3+0.30 2-M6 - - - - -
28P 28 +0.0210 8－0.015－0.051 31.3+0.30 2-M6 28N 28+0.028+0.007 8+0.0360 31.3+0.30 2-M6
30P 30 +0.0210 8－0.015－0.051 33.3+0.30 2-M6 - - - - -
32P 32 +0.0250 10－0.015－0.051 35.3+0.30 2-M8 - - -
35P 35 +0.0250 10－0.015－0.051 38.3+0.30 2-M8 - - - -
38P 38 +0.0250 10－0.015－0.051 41.3+0.30 2-M8 38N 38+0.050+0.025 10+0.0360 41.3+0.30 2-M8
40P 40 +0.0250 12－0.018－0.061 43.3+0.30 2-M8 - - - - -
42P 42 +0.0250 12－0.018－0.061 45.3+0.30 2-M8 42N 42+0.050+0.025 12+0.0430 45.3+0.30 2-M8
45P 45 +0.0250 14－0.018－0.061 48.8+0.30 2-M10 - - - - -
48P 48 +0.0250 14－0.018－0.061 51.8+0.30 2-M10 48N 48+0.050+0.025 14+0.0430 51.8+0.30 2-M10
50P 50 +0.0250 14－0.018－0.061 53.8+0.30 2-M10 - - - - -
55P 55 +0.0300 16－0.018－0.061 59.3+0.30 2-M10 55N 55+0.060+0.030 16+0.0430 59.3+0.30 2-M10
56P 56 +0.0300 16－0.018－0.061 60.3+0.30 2-M10 - - - - -
60P 60 +0.0300 18－0.018－0.061 64.4+0.30 2-M10 60N 60+0.060+0.030 18+0.0430 64.4+0.30 2-M10

※고정나사와 키 홈의 위치는 동일 평면상이 되지 못합니다 .

※고정나사는 제품에 부속됩니다 .

※키 홈 가공의 위치 정도는 육안으로 확인합니다 .

※키 홈의 각 허브에 대한 위치 정도가 필요한 경우는 문의해 주십시오 .

※표기 이외의 구멍 가공 규격 치수에 대해서는 권말의 기술 자료를참조하십시오 .

【고정나사의 위치】

형식 단면으로부터의위치［mm］
SFS-05 7
SFS-06 9
SFS-08 10
SFS-09 10
SFS-10 12
SFS-12 12
SFS-14 15

SFS-□S (C) 타입

【사양】

형식허용 토크［N・m］허용 오차최고 회전 속도［min-1］비틀림 스프링 정수［N・m/rad］축 방향 스프링 정수［N/mm］관성 모멘트［kg・m2］질량［kg］
편각［°］축 방향［mm］
SFS-05S-C151±0.62500016000430.11×10-30.30
SFS-06S-C301±0.82000029000450.30×10-30.50
SFS-08S-C601±1.01700083000600.87×10-31.00
SFS-09S-C1351±1.2150001700001221.60×10-31.40
SFS-10S-C1901±1.4130002500001602.60×10-32.10
SFS-12S-C3401±1.6110004300001976.50×10-33.40
SFS-14S-C6001±1.895007800003139.90×10-34.90

※최고 회전 속도는 동적 균형을 고려하지 않았습니다 .

※관성 모멘트 및 질량은 최대 구멍 지름일 때의 값입니다 .

【치수】

단위 [mm]
형식d1・d2DNLLFSFKM
최소최대
SFS-05S-C82056324520511244-M5×22
SFS-06S-C82568405625610304-M6×25
SFS-08S-C113582546630611384-M6×29
SFS-09S-C113894586830821424-M8×36
SFS-10S-C16421046880351016484-M8×36
SFS-12S-C19501267891401123544-M10×45
SFS-14S-C226014488102451231614-M12×54

※리머볼트 M 의 호칭은 수량 - 나사의 호칭×호칭길이입니다 .

【표준 구멍 지름】

형식표준 구멍 지름　d1・d2［mm］
891011121415161718192022242528303235384042454850555660
SFS-05S-C●●●●●●●●●●●●
SFS-06S-C●●●●●●●●●●●●●●●
SFS-08S-C●●●●●●●●●●●●●●●●
SFS-09S-C●●●●●●●●●●●●●●●●●
SFS-10S-C●●●●●●●●●●●●●●●
SFS-12S-C●●●●●●●●●●●●●●●
SFS-14S-C●●●●●●●●●●●●●●●●

※● 표시가 있는 난의 내경은 표준 내경으로 대응하고 있습니다 . 자세한 내용은 표준 구멍 가공 규격을 참조하십시오 .

【표준 구멍 가공 규격】

단위 [mm]
구 JIS(2 종 ) 규격 대응신 JIS(H9) 규격 대응신 JIS(JS9) 규격 대응
구멍 지름 호칭구멍 지름（d1・d2）키홈 폭（W1･W2）키홈 높이（T1･T2）고정나사 구멍（M）구멍 지름 호칭구멍 지름（d1・d2）키홈 폭（W1･W2）키홈 높이（T1･T2）고정나사 구멍（M）구멍 지름 호칭구멍 지름（d1・d2）키홈 폭（W1･W2）키홈 높이（T1･T2）고정나사 구멍（M）
공차 H7,H8공차 E9－－ 공차 H7,H8공차 H9－－ 공차 H7,H8공차 JS9－－
88+0.0220－－2-M48H8+0.02203+0.02509.4+0.302-M48J8+0.02203±0.01259.4+0.302-M4
99+0.0220－－2-M49H9+0.02203+0.025010.4+0.302-M49J9+0.02203±0.012510.4+0.302-M4
1010+0.0220－－2-M410H10+0.02203+0.025011.4+0.302-M410J10+0.02203±0.012511.4+0.302-M4
1111+0.0180－－2-M411H11+0.01804+0.030012.8+0.302-M411J11+0.01804±0.015012.8+0.302-M4
1212+0.01804+0.050+0.02013.5+0.302-M412H12+0.01804+0.030013.8+0.302-M412J12+0.01804±0.015013.8+0.302-M4
1414+0.01805+0.050+0.02016+0.302-M414H14+0.01805+0.030016.3+0.302-M414J14+0.01805±0.015016.3+0.302-M4
1515+0.01805+0.050+0.02017+0.302-M415H15+0.01805+0.030017.3+0.302-M415J15+0.01805±0.015017.3+0.302-M4
1616+0.01805+0.050+0.02018+0.302-M416H16+0.01805+0.030018.3+0.302-M416J16+0.01805±0.015018.3+0.302-M4
1717+0.01805+0.050+0.02019+0.302-M417H17+0.01805+0.030019.3+0.302-M417J17+0.01805±0.015019.3+0.302-M4
1818+0.01805+0.050+0.02020+0.302-M418H18+0.01806+0.030020.8+0.302-M518J18+0.01806±0.015020.8+0.302-M5
1919+0.02105+0.050+0.02021+0.302-M419H19+0.02106+0.030021.8+0.302-M519J19+0.02106±0.015021.8+0.302-M5
2020+0.02105+0.050+0.02022+0.302-M420H20+0.02106+0.030022.8+0.302-M520J20+0.02106±0.015022.8+0.302-M5
2222+0.02107+0.061+0.02525+0.302-M622H22+0.02106+0.030024.8+0.302-M522J22+0.02106±0.015024.8+0.302-M5
2424+0.02107+0.061+0.02527+0.302-M624H24+0.02108+0.036027.3+0.302-M624J24+0.02108±0.018027.3+0.302-M6
2525+0.02107+0.061+0.02528+0.302-M625H25+0.02108+0.036028.3+0.302-M625J25+0.02108±0.018028.3+0.302-M6
2828+0.02107+0.061+0.02531+0.302-M628H28+0.02108+0.036031.3+0.302-M628J28+0.02108±0.018031.3+0.302-M6
3030+0.02107+0.061+0.02533+0.302-M630H30+0.02108+0.036033.3+0.302-M630J30+0.02108±0.018033.3+0.302-M6
3232+0.025010+0.061+0.02535.5+0.302-M832H32+0.025010+0.036035.3+0.302-M832J32+0.025010±0.018035.3+0.302-M8
3535+0.025010+0.061+0.02538.5+0.302-M835H35+0.025010+0.036038.3+0.302-M835J35+0.025010±0.018038.3+0.302-M8
3838+0.025010+0.061+0.02541.5+0.302-M838H38+0.025010+0.036041.3+0.302-M838J38+0.025010±0.018041.3+0.302-M8
4040+0.025010+0.061+0.02543.5+0.302-M840H40+0.025012+0.043043.3+0.302-M840J40+0.025012±0.021543.3+0.302-M8
4242+0.025012+0.075+0.03245.5+0.302-M842H42+0.025012+0.043045.3+0.302-M842J42+0.025012±0.021545.3+0.302-M8
4545+0.025012+0.075+0.03248.5+0.302-M845H45+0.025014+0.043048.8+0.302-M1045J45+0.025014±0.021548.8+0.302-M10
4848+0.025012+0.075+0.03251.5+0.302-M848H48+0.025014+0.043051.8+0.302-M1048J48+0.025014±0.021551.8+0.302-M10
5050+0.025012+0.075+0.03253.5+0.302-M850H50+0.025014+0.043053.8+0.302-M1050J50+0.025014±0.021553.8+0.302-M10
5555+0.030015+0.075+0.03260+0.302-M1055H55+0.030016+0.043059.3+0.302-M1055J55+0.030016±0.021559.3+0.302-M10
5656+0.030015+0.075+0.03261+0.302-M1056H56+0.030016+0.043060.3+0.302-M1056J56+0.030016±0.021560.3+0.302-M10
6060+0.030015+0.075+0.03265+0.302-M1060H60+0.030018+0.043064.4+0.302-M1060J60+0.030018±0.021564.4+0.302-M10

JIS 신 규격 P9 JIS B 1301 1996 대응 모터 규격 JIS C 4210 2001 대응
구멍
지름
호칭		 구멍 지름（d1・d2） 키홈 폭（W1･W2） 키홈 높이（T1･T2） 고정나사 구멍（M） 구멍
지름
호칭		 구멍 지름（d1・d2） 키홈 폭（W1･W2） 키홈 높이（T1･T2） 고정나사 구멍（M）
공차 H7，H8 공차 P9 － － 공차 G7，F7 공차 H9 － －
8P 8 +0.0220 3－0.006－0.031 9.4+0.30 2-M4 - - - - -
9P 9 +0.0220 3－0.006－0.031 10.4+0.30 2-M4 - - - - -
10P 10 +0.0220 3－0.006－0.031 11.4+0.30 2-M4 - - - - -
11P 11+0.0180 4－0.012－0.042 12.8+0.30 2-M4 - - - - -
12P 12 +0.0180 4－0.012－0.042 13.8+0.30 2-M4 - - - - -
14P 14+0.0180 5－0.012－0.042 16.3+0.30 2-M4 14N 14+0.024+0.006 5+0.0300 16.3+0.30 2-M4
15P 15+0.0180 5－0.012－0.042 17.3+0.30 2-M4 - - - - -
16P 16+0.0180 5－0.012－0.042 18.3+0.30 2-M4 - - - - -
17P 17+0.0180 5－0.012－0.042 19.3+0.30 2-M4 - - - - -
18P 18+0.0180 6－0.012－0.042 20.8+0.30 2-M5 - - - - -
19P 19 +0.0210 6－0.012－0.042 21.8+0.30 2-M5 19N 19+0.028+0.007 6+0.0300 21.8+0.30 2-M5
20P 20 +0.0210 6－0.012－0.042 22.8+0.30 2-M5 - - - - -
22P 22 +0.0210 6－0.012－0.042 24.8+0.30 2-M5 - - - - -
24P 24 +0.0210 8－0.015－0.051 27.3+0.30 2-M6 24N 24+0.028+0.007 8+0.0360 27.3+0.30 2-M6
25P 25 +0.0210 8－0.015－0.051 28.3+0.30 2-M6 - - - - -
28P 28 +0.0210 8－0.015－0.051 31.3+0.30 2-M6 28N 28+0.028+0.007 8+0.0360 31.3+0.30 2-M6
30P 30 +0.0210 8－0.015－0.051 33.3+0.30 2-M6 - - - - -
32P 32 +0.0250 10－0.015－0.051 35.3+0.30 2-M8 - - -
35P 35 +0.0250 10－0.015－0.051 38.3+0.30 2-M8 - - - -
38P 38 +0.0250 10－0.015－0.051 41.3+0.30 2-M8 38N 38+0.050+0.025 10+0.0360 41.3+0.30 2-M8
40P 40 +0.0250 12－0.018－0.061 43.3+0.30 2-M8 - - - - -
42P 42 +0.0250 12－0.018－0.061 45.3+0.30 2-M8 42N 42+0.050+0.025 12+0.0430 45.3+0.30 2-M8
45P 45 +0.0250 14－0.018－0.061 48.8+0.30 2-M10 - - - - -
48P 48 +0.0250 14－0.018－0.061 51.8+0.30 2-M10 48N 48+0.050+0.025 14+0.0430 51.8+0.30 2-M10
50P 50 +0.0250 14－0.018－0.061 53.8+0.30 2-M10 - - - - -
55P 55 +0.0300 16－0.018－0.061 59.3+0.30 2-M10 55N 55+0.060+0.030 16+0.0430 59.3+0.30 2-M10
56P 56 +0.0300 16－0.018－0.061 60.3+0.30 2-M10 - - - - -
60P 60 +0.0300 18－0.018－0.061 64.4+0.30 2-M10 60N 60+0.060+0.030 18+0.0430 64.4+0.30 2-M10

※고정나사와 키 홈의 위치는 동일 평면상이 되지 못합니다 .

※고정나사는 제품에 부속됩니다 .

※키 홈 가공의 위치 정도는 육안으로 확인합니다 .

※키 홈의 각 허브에 대한 위치 정도가 필요한 경우는 문의해 주십시오 .

※표기 이외의 구멍 가공 규격 치수에 대해서는 권말의 기술 자료를참조하십시오 .

【고정나사의 위치】

형식 단면으로부터의위치［mm］
SFS-05 7
SFS-06 9
SFS-08 10
SFS-09 10
SFS-10 12
SFS-12 12
SFS-14 15

SFS-□W 타입

【사양】

형식허용토크［N・m］허용 오차최고회전 속도［min-1］비틀림 스프링 정수［N・m/rad］축 방향스프링 정수［N/mm］관성모멘트［kg・m2］질량［kg］
편심［mm］편각［°］축 방향［mm］
SFS-05W200.21（片側）±1.2100008000210.14×10-30.40
SFS-06W400.31（片側）±1.6800014000220.41×10-30.70
SFS-08W800.31（片側）±2.0680041000301.10×10-31.30
SFS-09W1800.51（片側）±2.4600085000612.20×10-32.10
SFS-10W2500.51（片側）±2.85200125000803.60×10-32.80
SFS-12W4500.61（片側）±3.24400215000989.20×10-34.90
SFS-14W8000.71（片側）±3.6380039000015615.00×10-37.10

※최고 회전 속도는 동적 균형을 고려하지 않았습니다 .

※관성 모멘트 및 질량은 최대 구멍 지름일 때의 값입니다 .

【치수】

단위［mm］
형식d1・d2DNLLFLPSFd3KM
예비구멍최소최대
SFS-05W78205632582085420248-M5×15
SFS-06W782568407425126324308-M6×18
SFS-08W10113582548430126228388-M6×20
SFS-09W101138945898302281232428-M8×27
SFS-10W15164210468110352010734488-M8×27
SFS-12W181950126781274025111040548-M10×32
SFS-14W202260144881444530121546618-M12×38

※예비구멍은 드릴 구멍입니다 .

※리머볼트 M 의 호칭은 수량 - 나사의 호칭×호칭길이입니다 .

【표준 구멍 지름】

형식표준 구멍 지름　d1・d2［mm］
891011121415161718192022242528303235384042454850555660
SFS-05W●●●●●●●●●●●●
SFS-06W●●●●●●●●●●●●●●●
SFS-08W●●●●●●●●●●●●●●●●
SFS-09W●●●●●●●●●●●●●●●●●
SFS-10W●●●●●●●●●●●●●●●
SFS-12W●●●●●●●●●●●●●●●
SFS-14W●●●●●●●●●●●●●●●●

※● 표시가 있는 난의 내경은 표준 내경으로 대응하고 있습니다 . 자세한 내용은 표준 구멍 가공 규격을 참조하십시오 .

【표준 구멍 가공 규격】

단위 [mm]
구 JIS(2 종 ) 규격 대응신 JIS(H9) 규격 대응신 JIS(JS9) 규격 대응
구멍 지름 호칭구멍 지름（d1・d2）키홈 폭（W1･W2）키홈 높이（T1･T2）고정나사 구멍（M）구멍 지름 호칭구멍 지름（d1・d2）키홈 폭（W1･W2）키홈 높이（T1･T2）고정나사 구멍（M）구멍 지름 호칭구멍 지름（d1・d2）키홈 폭（W1･W2）키홈 높이（T1･T2）고정나사 구멍（M）
공차 H7,H8공차 E9－－ 공차 H7,H8공차 H9－－ 공차 H7,H8공차 JS9－－
88+0.0220－－2-M48H8+0.02203+0.02509.4+0.302-M48J8+0.02203±0.01259.4+0.302-M4
99+0.0220－－2-M49H9+0.02203+0.025010.4+0.302-M49J9+0.02203±0.012510.4+0.302-M4
1010+0.0220－－2-M410H10+0.02203+0.025011.4+0.302-M410J10+0.02203±0.012511.4+0.302-M4
1111+0.0180－－2-M411H11+0.01804+0.030012.8+0.302-M411J11+0.01804±0.015012.8+0.302-M4
1212+0.01804+0.050+0.02013.5+0.302-M412H12+0.01804+0.030013.8+0.302-M412J12+0.01804±0.015013.8+0.302-M4
1414+0.01805+0.050+0.02016+0.302-M414H14+0.01805+0.030016.3+0.302-M414J14+0.01805±0.015016.3+0.302-M4
1515+0.01805+0.050+0.02017+0.302-M415H15+0.01805+0.030017.3+0.302-M415J15+0.01805±0.015017.3+0.302-M4
1616+0.01805+0.050+0.02018+0.302-M416H16+0.01805+0.030018.3+0.302-M416J16+0.01805±0.015018.3+0.302-M4
1717+0.01805+0.050+0.02019+0.302-M417H17+0.01805+0.030019.3+0.302-M417J17+0.01805±0.015019.3+0.302-M4
1818+0.01805+0.050+0.02020+0.302-M418H18+0.01806+0.030020.8+0.302-M518J18+0.01806±0.015020.8+0.302-M5
1919+0.02105+0.050+0.02021+0.302-M419H19+0.02106+0.030021.8+0.302-M519J19+0.02106±0.015021.8+0.302-M5
2020+0.02105+0.050+0.02022+0.302-M420H20+0.02106+0.030022.8+0.302-M520J20+0.02106±0.015022.8+0.302-M5
2222+0.02107+0.061+0.02525+0.302-M622H22+0.02106+0.030024.8+0.302-M522J22+0.02106±0.015024.8+0.302-M5
2424+0.02107+0.061+0.02527+0.302-M624H24+0.02108+0.036027.3+0.302-M624J24+0.02108±0.018027.3+0.302-M6
2525+0.02107+0.061+0.02528+0.302-M625H25+0.02108+0.036028.3+0.302-M625J25+0.02108±0.018028.3+0.302-M6
2828+0.02107+0.061+0.02531+0.302-M628H28+0.02108+0.036031.3+0.302-M628J28+0.02108±0.018031.3+0.302-M6
3030+0.02107+0.061+0.02533+0.302-M630H30+0.02108+0.036033.3+0.302-M630J30+0.02108±0.018033.3+0.302-M6
3232+0.025010+0.061+0.02535.5+0.302-M832H32+0.025010+0.036035.3+0.302-M832J32+0.025010±0.018035.3+0.302-M8
3535+0.025010+0.061+0.02538.5+0.302-M835H35+0.025010+0.036038.3+0.302-M835J35+0.025010±0.018038.3+0.302-M8
3838+0.025010+0.061+0.02541.5+0.302-M838H38+0.025010+0.036041.3+0.302-M838J38+0.025010±0.018041.3+0.302-M8
4040+0.025010+0.061+0.02543.5+0.302-M840H40+0.025012+0.043043.3+0.302-M840J40+0.025012±0.021543.3+0.302-M8
4242+0.025012+0.075+0.03245.5+0.302-M842H42+0.025012+0.043045.3+0.302-M842J42+0.025012±0.021545.3+0.302-M8
4545+0.025012+0.075+0.03248.5+0.302-M845H45+0.025014+0.043048.8+0.302-M1045J45+0.025014±0.021548.8+0.302-M10
4848+0.025012+0.075+0.03251.5+0.302-M848H48+0.025014+0.043051.8+0.302-M1048J48+0.025014±0.021551.8+0.302-M10
5050+0.025012+0.075+0.03253.5+0.302-M850H50+0.025014+0.043053.8+0.302-M1050J50+0.025014±0.021553.8+0.302-M10
5555+0.030015+0.075+0.03260+0.302-M1055H55+0.030016+0.043059.3+0.302-M1055J55+0.030016±0.021559.3+0.302-M10
5656+0.030015+0.075+0.03261+0.302-M1056H56+0.030016+0.043060.3+0.302-M1056J56+0.030016±0.021560.3+0.302-M10
6060+0.030015+0.075+0.03265+0.302-M1060H60+0.030018+0.043064.4+0.302-M1060J60+0.030018±0.021564.4+0.302-M10

JIS 신 규격 P9 JIS B 1301 1996 대응 모터 규격 JIS C 4210 2001 대응
구멍
지름
호칭		 구멍 지름（d1・d2） 키홈 폭（W1･W2） 키홈 높이（T1･T2） 고정나사 구멍（M） 구멍
지름
호칭		 구멍 지름（d1・d2） 키홈 폭（W1･W2） 키홈 높이（T1･T2） 고정나사 구멍（M）
공차 H7，H8 공차 P9 － － 공차 G7，F7 공차 H9 － －
8P 8 +0.0220 3－0.006－0.031 9.4+0.30 2-M4 - - - - -
9P 9 +0.0220 3－0.006－0.031 10.4+0.30 2-M4 - - - - -
10P 10 +0.0220 3－0.006－0.031 11.4+0.30 2-M4 - - - - -
11P 11+0.0180 4－0.012－0.042 12.8+0.30 2-M4 - - - - -
12P 12 +0.0180 4－0.012－0.042 13.8+0.30 2-M4 - - - - -
14P 14+0.0180 5－0.012－0.042 16.3+0.30 2-M4 14N 14+0.024+0.006 5+0.0300 16.3+0.30 2-M4
15P 15+0.0180 5－0.012－0.042 17.3+0.30 2-M4 - - - - -
16P 16+0.0180 5－0.012－0.042 18.3+0.30 2-M4 - - - - -
17P 17+0.0180 5－0.012－0.042 19.3+0.30 2-M4 - - - - -
18P 18+0.0180 6－0.012－0.042 20.8+0.30 2-M5 - - - - -
19P 19 +0.0210 6－0.012－0.042 21.8+0.30 2-M5 19N 19+0.028+0.007 6+0.0300 21.8+0.30 2-M5
20P 20 +0.0210 6－0.012－0.042 22.8+0.30 2-M5 - - - - -
22P 22 +0.0210 6－0.012－0.042 24.8+0.30 2-M5 - - - - -
24P 24 +0.0210 8－0.015－0.051 27.3+0.30 2-M6 24N 24+0.028+0.007 8+0.0360 27.3+0.30 2-M6
25P 25 +0.0210 8－0.015－0.051 28.3+0.30 2-M6 - - - - -
28P 28 +0.0210 8－0.015－0.051 31.3+0.30 2-M6 28N 28+0.028+0.007 8+0.0360 31.3+0.30 2-M6
30P 30 +0.0210 8－0.015－0.051 33.3+0.30 2-M6 - - - - -
32P 32 +0.0250 10－0.015－0.051 35.3+0.30 2-M8 - - -
35P 35 +0.0250 10－0.015－0.051 38.3+0.30 2-M8 - - - -
38P 38 +0.0250 10－0.015－0.051 41.3+0.30 2-M8 38N 38+0.050+0.025 10+0.0360 41.3+0.30 2-M8
40P 40 +0.0250 12－0.018－0.061 43.3+0.30 2-M8 - - - - -
42P 42 +0.0250 12－0.018－0.061 45.3+0.30 2-M8 42N 42+0.050+0.025 12+0.0430 45.3+0.30 2-M8
45P 45 +0.0250 14－0.018－0.061 48.8+0.30 2-M10 - - - - -
48P 48 +0.0250 14－0.018－0.061 51.8+0.30 2-M10 48N 48+0.050+0.025 14+0.0430 51.8+0.30 2-M10
50P 50 +0.0250 14－0.018－0.061 53.8+0.30 2-M10 - - - - -
55P 55 +0.0300 16－0.018－0.061 59.3+0.30 2-M10 55N 55+0.060+0.030 16+0.0430 59.3+0.30 2-M10
56P 56 +0.0300 16－0.018－0.061 60.3+0.30 2-M10 - - - - -
60P 60 +0.0300 18－0.018－0.061 64.4+0.30 2-M10 60N 60+0.060+0.030 18+0.0430 64.4+0.30 2-M10

※고정나사와 키 홈의 위치는 동일 평면상이 되지 못합니다 .

※고정나사는 제품에 부속됩니다 .

※키 홈 가공의 위치 정도는 육안으로 확인합니다 .

※키 홈의 각 허브에 대한 위치 정도가 필요한 경우는 문의해 주십시오 .

※표기 이외의 구멍 가공 규격 치수에 대해서는 권말의 기술 자료를참조하십시오 .

【고정나사의 위치】

형식 단면으로부터의위치［mm］
SFS-05 7
SFS-06 9
SFS-08 10
SFS-09 10
SFS-10 12
SFS-12 12
SFS-14 15

SFS-□W (C) 타입

【사양】

형식허용토크［N・m］허용 오차최고회전 속도［min-1］비틀림 스프링정수［N・m/rad］축 방향스프링 정수［N/mm］관성 모멘트［kg･m2］질량［kg］
편심［mm］편각［°］축 방향［mm］
SFS-05W-C150.21（片側）±1.2100008000210.14×10-30.40
SFS-06W-C300.31（片側）±1.6800014000220.41×10-30.70
SFS-08W-C600.31（片側）±2.0680041000301.10×10-31.30
SFS-09W-C1350.51（片側）±2.4600085000612.20×10-32.10
SFS-10W-C1900.51（片側）±2.85200125000803.60×10-32.80
SFS-12W-C3400.61（片側）±3.24400215000989.20×10-34.90
SFS-14W-C6000.71（片側）±3.6380039000015615.00×10-37.10

※최고 회전 속도는 동적 균형을 고려하지 않았습니다 .

※관성 모멘트 및 질량은 최대 구멍 지름일 때의 값입니다 .

【치수】

단위 [mm]
형식d1・d2DNLLFLPSFd3KM
최소최대
SFS-05W-C8205632582085420248-M5×15
SFS-06W-C82568407425126324308-M6×18
SFS-08W-C113582548430126228388-M6×20
SFS-09W-C1138945898302281232428-M8×27
SFS-10W-C164210468110352010734488-M8×27
SFS-12W-C1950126781274025111040548-M10×32
SFS-14W-C2260144881444530121546618-M12×38

※리머볼트 M 의 호칭은 수량 - 나사의 호칭×호칭길이입니다 .

【표준 구멍 지름】

형식표준 구멍 지름　d1・d2［mm］
891011121415161718192022242528303235384042454850555660
SFS-05W-C●●●●●●●●●●●●
SFS-06W-C●●●●●●●●●●●●●●●
SFS-08W-C●●●●●●●●●●●●●●●●
SFS-09W-C●●●●●●●●●●●●●●●●●
SFS-10W-C●●●●●●●●●●●●●●●
SFS-12W-C●●●●●●●●●●●●●●●
SFS-14W-C●●●●●●●●●●●●●●●●

※● 표시가 있는 난의 내경은 표준 내경으로 대응하고 있습니다 . 자세한 내용은 표준 구멍 가공 규격을 참조하십시오 .

【표준 구멍 가공 규격】

단위 [mm]
구 JIS(2 종 ) 규격 대응신 JIS(H9) 규격 대응신 JIS(JS9) 규격 대응
구멍 지름 호칭구멍 지름（d1・d2）키홈 폭（W1･W2）키홈 높이（T1･T2）고정나사 구멍（M）구멍 지름 호칭구멍 지름（d1・d2）키홈 폭（W1･W2）키홈 높이（T1･T2）고정나사 구멍（M）구멍 지름 호칭구멍 지름（d1・d2）키홈 폭（W1･W2）키홈 높이（T1･T2）고정나사 구멍（M）
공차 H7,H8공차 E9－－ 공차 H7,H8공차 H9－－ 공차 H7,H8공차 JS9－－
88+0.0220－－2-M48H8+0.02203+0.02509.4+0.302-M48J8+0.02203±0.01259.4+0.302-M4
99+0.0220－－2-M49H9+0.02203+0.025010.4+0.302-M49J9+0.02203±0.012510.4+0.302-M4
1010+0.0220－－2-M410H10+0.02203+0.025011.4+0.302-M410J10+0.02203±0.012511.4+0.302-M4
1111+0.0180－－2-M411H11+0.01804+0.030012.8+0.302-M411J11+0.01804±0.015012.8+0.302-M4
1212+0.01804+0.050+0.02013.5+0.302-M412H12+0.01804+0.030013.8+0.302-M412J12+0.01804±0.015013.8+0.302-M4
1414+0.01805+0.050+0.02016+0.302-M414H14+0.01805+0.030016.3+0.302-M414J14+0.01805±0.015016.3+0.302-M4
1515+0.01805+0.050+0.02017+0.302-M415H15+0.01805+0.030017.3+0.302-M415J15+0.01805±0.015017.3+0.302-M4
1616+0.01805+0.050+0.02018+0.302-M416H16+0.01805+0.030018.3+0.302-M416J16+0.01805±0.015018.3+0.302-M4
1717+0.01805+0.050+0.02019+0.302-M417H17+0.01805+0.030019.3+0.302-M417J17+0.01805±0.015019.3+0.302-M4
1818+0.01805+0.050+0.02020+0.302-M418H18+0.01806+0.030020.8+0.302-M518J18+0.01806±0.015020.8+0.302-M5
1919+0.02105+0.050+0.02021+0.302-M419H19+0.02106+0.030021.8+0.302-M519J19+0.02106±0.015021.8+0.302-M5
2020+0.02105+0.050+0.02022+0.302-M420H20+0.02106+0.030022.8+0.302-M520J20+0.02106±0.015022.8+0.302-M5
2222+0.02107+0.061+0.02525+0.302-M622H22+0.02106+0.030024.8+0.302-M522J22+0.02106±0.015024.8+0.302-M5
2424+0.02107+0.061+0.02527+0.302-M624H24+0.02108+0.036027.3+0.302-M624J24+0.02108±0.018027.3+0.302-M6
2525+0.02107+0.061+0.02528+0.302-M625H25+0.02108+0.036028.3+0.302-M625J25+0.02108±0.018028.3+0.302-M6
2828+0.02107+0.061+0.02531+0.302-M628H28+0.02108+0.036031.3+0.302-M628J28+0.02108±0.018031.3+0.302-M6
3030+0.02107+0.061+0.02533+0.302-M630H30+0.02108+0.036033.3+0.302-M630J30+0.02108±0.018033.3+0.302-M6
3232+0.025010+0.061+0.02535.5+0.302-M832H32+0.025010+0.036035.3+0.302-M832J32+0.025010±0.018035.3+0.302-M8
3535+0.025010+0.061+0.02538.5+0.302-M835H35+0.025010+0.036038.3+0.302-M835J35+0.025010±0.018038.3+0.302-M8
3838+0.025010+0.061+0.02541.5+0.302-M838H38+0.025010+0.036041.3+0.302-M838J38+0.025010±0.018041.3+0.302-M8
4040+0.025010+0.061+0.02543.5+0.302-M840H40+0.025012+0.043043.3+0.302-M840J40+0.025012±0.021543.3+0.302-M8
4242+0.025012+0.075+0.03245.5+0.302-M842H42+0.025012+0.043045.3+0.302-M842J42+0.025012±0.021545.3+0.302-M8
4545+0.025012+0.075+0.03248.5+0.302-M845H45+0.025014+0.043048.8+0.302-M1045J45+0.025014±0.021548.8+0.302-M10
4848+0.025012+0.075+0.03251.5+0.302-M848H48+0.025014+0.043051.8+0.302-M1048J48+0.025014±0.021551.8+0.302-M10
5050+0.025012+0.075+0.03253.5+0.302-M850H50+0.025014+0.043053.8+0.302-M1050J50+0.025014±0.021553.8+0.302-M10
5555+0.030015+0.075+0.03260+0.302-M1055H55+0.030016+0.043059.3+0.302-M1055J55+0.030016±0.021559.3+0.302-M10
5656+0.030015+0.075+0.03261+0.302-M1056H56+0.030016+0.043060.3+0.302-M1056J56+0.030016±0.021560.3+0.302-M10
6060+0.030015+0.075+0.03265+0.302-M1060H60+0.030018+0.043064.4+0.302-M1060J60+0.030018±0.021564.4+0.302-M10

JIS 신 규격 P9 JIS B 1301 1996 대응 모터 규격 JIS C 4210 2001 대응
구멍
지름
호칭		 구멍 지름（d1・d2） 키홈 폭（W1･W2） 키홈 높이（T1･T2） 고정나사 구멍（M） 구멍
지름
호칭		 구멍 지름（d1・d2） 키홈 폭（W1･W2） 키홈 높이（T1･T2） 고정나사 구멍（M）
공차 H7，H8 공차 P9 － － 공차 G7，F7 공차 H9 － －
8P 8 +0.0220 3－0.006－0.031 9.4+0.30 2-M4 - - - - -
9P 9 +0.0220 3－0.006－0.031 10.4+0.30 2-M4 - - - - -
10P 10 +0.0220 3－0.006－0.031 11.4+0.30 2-M4 - - - - -
11P 11+0.0180 4－0.012－0.042 12.8+0.30 2-M4 - - - - -
12P 12 +0.0180 4－0.012－0.042 13.8+0.30 2-M4 - - - - -
14P 14+0.0180 5－0.012－0.042 16.3+0.30 2-M4 14N 14+0.024+0.006 5+0.0300 16.3+0.30 2-M4
15P 15+0.0180 5－0.012－0.042 17.3+0.30 2-M4 - - - - -
16P 16+0.0180 5－0.012－0.042 18.3+0.30 2-M4 - - - - -
17P 17+0.0180 5－0.012－0.042 19.3+0.30 2-M4 - - - - -
18P 18+0.0180 6－0.012－0.042 20.8+0.30 2-M5 - - - - -
19P 19 +0.0210 6－0.012－0.042 21.8+0.30 2-M5 19N 19+0.028+0.007 6+0.0300 21.8+0.30 2-M5
20P 20 +0.0210 6－0.012－0.042 22.8+0.30 2-M5 - - - - -
22P 22 +0.0210 6－0.012－0.042 24.8+0.30 2-M5 - - - - -
24P 24 +0.0210 8－0.015－0.051 27.3+0.30 2-M6 24N 24+0.028+0.007 8+0.0360 27.3+0.30 2-M6
25P 25 +0.0210 8－0.015－0.051 28.3+0.30 2-M6 - - - - -
28P 28 +0.0210 8－0.015－0.051 31.3+0.30 2-M6 28N 28+0.028+0.007 8+0.0360 31.3+0.30 2-M6
30P 30 +0.0210 8－0.015－0.051 33.3+0.30 2-M6 - - - - -
32P 32 +0.0250 10－0.015－0.051 35.3+0.30 2-M8 - - -
35P 35 +0.0250 10－0.015－0.051 38.3+0.30 2-M8 - - - -
38P 38 +0.0250 10－0.015－0.051 41.3+0.30 2-M8 38N 38+0.050+0.025 10+0.0360 41.3+0.30 2-M8
40P 40 +0.0250 12－0.018－0.061 43.3+0.30 2-M8 - - - - -
42P 42 +0.0250 12－0.018－0.061 45.3+0.30 2-M8 42N 42+0.050+0.025 12+0.0430 45.3+0.30 2-M8
45P 45 +0.0250 14－0.018－0.061 48.8+0.30 2-M10 - - - - -
48P 48 +0.0250 14－0.018－0.061 51.8+0.30 2-M10 48N 48+0.050+0.025 14+0.0430 51.8+0.30 2-M10
50P 50 +0.0250 14－0.018－0.061 53.8+0.30 2-M10 - - - - -
55P 55 +0.0300 16－0.018－0.061 59.3+0.30 2-M10 55N 55+0.060+0.030 16+0.0430 59.3+0.30 2-M10
56P 56 +0.0300 16－0.018－0.061 60.3+0.30 2-M10 - - - - -
60P 60 +0.0300 18－0.018－0.061 64.4+0.30 2-M10 60N 60+0.060+0.030 18+0.0430 64.4+0.30 2-M10

※고정나사와 키 홈의 위치는 동일 평면상이 되지 못합니다 .

※고정나사는 제품에 부속됩니다 .

※키 홈 가공의 위치 정도는 육안으로 확인합니다 .

※키 홈의 각 허브에 대한 위치 정도가 필요한 경우는 문의해 주십시오 .

※표기 이외의 구멍 가공 규격 치수에 대해서는 권말의 기술 자료를참조하십시오 .

【고정나사의 위치】

형식 단면으로부터의위치［mm］
SFS-05 7
SFS-06 9
SFS-08 10
SFS-09 10
SFS-10 12
SFS-12 12
SFS-14 15

SFS-□G 타입

【사양】

형식허용토크［N・m］허용 오차최고회전 속도［min-1］비틀림 스프링 정수［N・m/rad］축 방향스프링 정수［N/mm］관성모멘트［kg･m2］질량［kg］
편심［mm］편각［°］축 방향［mm］
SFS-05G200.51（편측）±1.2200008000210.20×10-30.50
SFS-06G400.51（편측）±1.61600014000220.55×10-30.90
SFS-08G800.51（편측）±2.01300041000301.50×10-31.70
SFS-09G1800.61（편측）±2.41200085000612.90×10-32.40
SFS-10G2500.61（편측）±2.810000125000804.60×10-33.30
SFS-12G4500.81（편측）±3.280002150009811.80×10-35.80
SFS-14G8000.91（편측）±3.6700039000015621.20×10-38.60

※최고 회전 속도는 동적 균형을 고려하지 않았습니다 .

※관성 모멘트 및 질량은 최대 구멍 지름일 때의 값입니다 .

【치수】

단위 [mm]
형식d1・d2DNLLFLSSFKM
예비구멍최소최대
SFS-05G78205632742024511248-M5×22
SFS-06G78256840862524610308-M6×25
SFS-08G1011358254983026611388-M6×29
SFS-09G10113894581063030821428-M8×36
SFS-10G1516421046812035301016488-M8×36
SFS-12G1819501267814040381123548-M10×45
SFS-14G2022601448816045461231618-M12×54

※예비구멍은 드릴 구멍입니다 .

※상기 LS 치수 이상의 제품을 원하시는 경우는 필요 LS 치수 ［mm］를 지시해 주십시오 . 또한 , 상기 LS 치수 미만 , LS ≧ 1000 의 경우는 문의해 주시기 바랍니다 .

※리머볼트 M 의 호칭은 수량 - 나사의 호칭×호칭길이입니다 .

【표준 구멍 지름】

형식표준 구멍 지름　d1・d2［mm］
891011121415161718192022242528303235384042454850555660
SFS-05G●●●●●●●●●●●●
SFS-06G●●●●●●●●●●●●●●●
SFS-08G●●●●●●●●●●●●●●●●
SFS-09G●●●●●●●●●●●●●●●●●
SFS-10G●●●●●●●●●●●●●●●
SFS-12G●●●●●●●●●●●●●●●
SFS-14G●●●●●●●●●●●●●●●●

※● 표시가 있는 난의 내경은 표준 내경으로 대응하고 있습니다 . 자세한 내용은 표준 구멍 가공 규격을 참조하십시오 .

【표준 구멍 가공 규격】

단위 [mm]
구 JIS(2 종 ) 규격 대응신 JIS(H9) 규격 대응신 JIS(JS9) 규격 대응
구멍 지름 호칭구멍 지름（d1・d2）키홈 폭（W1･W2）키홈 높이（T1･T2）고정나사 구멍（M）구멍 지름 호칭구멍 지름（d1・d2）키홈 폭（W1･W2）키홈 높이（T1･T2）고정나사 구멍（M）구멍 지름 호칭구멍 지름（d1・d2）키홈 폭（W1･W2）키홈 높이（T1･T2）고정나사 구멍（M）
공차 H7,H8공차 E9－－ 공차 H7,H8공차 H9－－ 공차 H7,H8공차 JS9－－
88+0.0220－－2-M48H8+0.02203+0.02509.4+0.302-M48J8+0.02203±0.01259.4+0.302-M4
99+0.0220－－2-M49H9+0.02203+0.025010.4+0.302-M49J9+0.02203±0.012510.4+0.302-M4
1010+0.0220－－2-M410H10+0.02203+0.025011.4+0.302-M410J10+0.02203±0.012511.4+0.302-M4
1111+0.0180－－2-M411H11+0.01804+0.030012.8+0.302-M411J11+0.01804±0.015012.8+0.302-M4
1212+0.01804+0.050+0.02013.5+0.302-M412H12+0.01804+0.030013.8+0.302-M412J12+0.01804±0.015013.8+0.302-M4
1414+0.01805+0.050+0.02016+0.302-M414H14+0.01805+0.030016.3+0.302-M414J14+0.01805±0.015016.3+0.302-M4
1515+0.01805+0.050+0.02017+0.302-M415H15+0.01805+0.030017.3+0.302-M415J15+0.01805±0.015017.3+0.302-M4
1616+0.01805+0.050+0.02018+0.302-M416H16+0.01805+0.030018.3+0.302-M416J16+0.01805±0.015018.3+0.302-M4
1717+0.01805+0.050+0.02019+0.302-M417H17+0.01805+0.030019.3+0.302-M417J17+0.01805±0.015019.3+0.302-M4
1818+0.01805+0.050+0.02020+0.302-M418H18+0.01806+0.030020.8+0.302-M518J18+0.01806±0.015020.8+0.302-M5
1919+0.02105+0.050+0.02021+0.302-M419H19+0.02106+0.030021.8+0.302-M519J19+0.02106±0.015021.8+0.302-M5
2020+0.02105+0.050+0.02022+0.302-M420H20+0.02106+0.030022.8+0.302-M520J20+0.02106±0.015022.8+0.302-M5
2222+0.02107+0.061+0.02525+0.302-M622H22+0.02106+0.030024.8+0.302-M522J22+0.02106±0.015024.8+0.302-M5
2424+0.02107+0.061+0.02527+0.302-M624H24+0.02108+0.036027.3+0.302-M624J24+0.02108±0.018027.3+0.302-M6
2525+0.02107+0.061+0.02528+0.302-M625H25+0.02108+0.036028.3+0.302-M625J25+0.02108±0.018028.3+0.302-M6
2828+0.02107+0.061+0.02531+0.302-M628H28+0.02108+0.036031.3+0.302-M628J28+0.02108±0.018031.3+0.302-M6
3030+0.02107+0.061+0.02533+0.302-M630H30+0.02108+0.036033.3+0.302-M630J30+0.02108±0.018033.3+0.302-M6
3232+0.025010+0.061+0.02535.5+0.302-M832H32+0.025010+0.036035.3+0.302-M832J32+0.025010±0.018035.3+0.302-M8
3535+0.025010+0.061+0.02538.5+0.302-M835H35+0.025010+0.036038.3+0.302-M835J35+0.025010±0.018038.3+0.302-M8
3838+0.025010+0.061+0.02541.5+0.302-M838H38+0.025010+0.036041.3+0.302-M838J38+0.025010±0.018041.3+0.302-M8
4040+0.025010+0.061+0.02543.5+0.302-M840H40+0.025012+0.043043.3+0.302-M840J40+0.025012±0.021543.3+0.302-M8
4242+0.025012+0.075+0.03245.5+0.302-M842H42+0.025012+0.043045.3+0.302-M842J42+0.025012±0.021545.3+0.302-M8
4545+0.025012+0.075+0.03248.5+0.302-M845H45+0.025014+0.043048.8+0.302-M1045J45+0.025014±0.021548.8+0.302-M10
4848+0.025012+0.075+0.03251.5+0.302-M848H48+0.025014+0.043051.8+0.302-M1048J48+0.025014±0.021551.8+0.302-M10
5050+0.025012+0.075+0.03253.5+0.302-M850H50+0.025014+0.043053.8+0.302-M1050J50+0.025014±0.021553.8+0.302-M10
5555+0.030015+0.075+0.03260+0.302-M1055H55+0.030016+0.043059.3+0.302-M1055J55+0.030016±0.021559.3+0.302-M10
5656+0.030015+0.075+0.03261+0.302-M1056H56+0.030016+0.043060.3+0.302-M1056J56+0.030016±0.021560.3+0.302-M10
6060+0.030015+0.075+0.03265+0.302-M1060H60+0.030018+0.043064.4+0.302-M1060J60+0.030018±0.021564.4+0.302-M10

JIS 신 규격 P9 JIS B 1301 1996 대응 모터 규격 JIS C 4210 2001 대응
구멍
지름
호칭		 구멍 지름（d1・d2） 키홈 폭（W1･W2） 키홈 높이（T1･T2） 고정나사 구멍（M） 구멍
지름
호칭		 구멍 지름（d1・d2） 키홈 폭（W1･W2） 키홈 높이（T1･T2） 고정나사 구멍（M）
공차 H7，H8 공차 P9 － － 공차 G7，F7 공차 H9 － －
8P 8 +0.0220 3－0.006－0.031 9.4+0.30 2-M4 - - - - -
9P 9 +0.0220 3－0.006－0.031 10.4+0.30 2-M4 - - - - -
10P 10 +0.0220 3－0.006－0.031 11.4+0.30 2-M4 - - - - -
11P 11+0.0180 4－0.012－0.042 12.8+0.30 2-M4 - - - - -
12P 12 +0.0180 4－0.012－0.042 13.8+0.30 2-M4 - - - - -
14P 14+0.0180 5－0.012－0.042 16.3+0.30 2-M4 14N 14+0.024+0.006 5+0.0300 16.3+0.30 2-M4
15P 15+0.0180 5－0.012－0.042 17.3+0.30 2-M4 - - - - -
16P 16+0.0180 5－0.012－0.042 18.3+0.30 2-M4 - - - - -
17P 17+0.0180 5－0.012－0.042 19.3+0.30 2-M4 - - - - -
18P 18+0.0180 6－0.012－0.042 20.8+0.30 2-M5 - - - - -
19P 19 +0.0210 6－0.012－0.042 21.8+0.30 2-M5 19N 19+0.028+0.007 6+0.0300 21.8+0.30 2-M5
20P 20 +0.0210 6－0.012－0.042 22.8+0.30 2-M5 - - - - -
22P 22 +0.0210 6－0.012－0.042 24.8+0.30 2-M5 - - - - -
24P 24 +0.0210 8－0.015－0.051 27.3+0.30 2-M6 24N 24+0.028+0.007 8+0.0360 27.3+0.30 2-M6
25P 25 +0.0210 8－0.015－0.051 28.3+0.30 2-M6 - - - - -
28P 28 +0.0210 8－0.015－0.051 31.3+0.30 2-M6 28N 28+0.028+0.007 8+0.0360 31.3+0.30 2-M6
30P 30 +0.0210 8－0.015－0.051 33.3+0.30 2-M6 - - - - -
32P 32 +0.0250 10－0.015－0.051 35.3+0.30 2-M8 - - -
35P 35 +0.0250 10－0.015－0.051 38.3+0.30 2-M8 - - - -
38P 38 +0.0250 10－0.015－0.051 41.3+0.30 2-M8 38N 38+0.050+0.025 10+0.0360 41.3+0.30 2-M8
40P 40 +0.0250 12－0.018－0.061 43.3+0.30 2-M8 - - - - -
42P 42 +0.0250 12－0.018－0.061 45.3+0.30 2-M8 42N 42+0.050+0.025 12+0.0430 45.3+0.30 2-M8
45P 45 +0.0250 14－0.018－0.061 48.8+0.30 2-M10 - - - - -
48P 48 +0.0250 14－0.018－0.061 51.8+0.30 2-M10 48N 48+0.050+0.025 14+0.0430 51.8+0.30 2-M10
50P 50 +0.0250 14－0.018－0.061 53.8+0.30 2-M10 - - - - -
55P 55 +0.0300 16－0.018－0.061 59.3+0.30 2-M10 55N 55+0.060+0.030 16+0.0430 59.3+0.30 2-M10
56P 56 +0.0300 16－0.018－0.061 60.3+0.30 2-M10 - - - - -
60P 60 +0.0300 18－0.018－0.061 64.4+0.30 2-M10 60N 60+0.060+0.030 18+0.0430 64.4+0.30 2-M10

※고정나사와 키 홈의 위치는 동일 평면상이 되지 못합니다 .

※고정나사는 제품에 부속됩니다 .

※키 홈 가공의 위치 정도는 육안으로 확인합니다 .

※키 홈의 각 허브에 대한 위치 정도가 필요한 경우는 문의해 주십시오 .

※표기 이외의 구멍 가공 규격 치수에 대해서는 권말의 기술 자료를참조하십시오 .

【고정나사의 위치】

형식 단면으로부터의위치［mm］
SFS-05 7
SFS-06 9
SFS-08 10
SFS-09 10
SFS-10 12
SFS-12 12
SFS-14 15

SFS-□G (C) 타입

【사양】

형식허용토크［N・m］허용 오차최고회전 속도［min-1］비틀림 스프링 정수［N・m/rad］축 방향스프링 정수［N/mm］관성모멘트［kg･m2］질량［kg］
편심［mm］편각［°］축 방향［mm］
SFS-05G-C150.51（편측）±1.2200008000210.20×10-30.50
SFS-06G-C300.51（편측）±1.61600014000220.55×10-30.90
SFS-08G-C600.51（편측）±2.01300041000301.50×10-31.70
SFS-09G-C1350.61（편측）±2.41200085000612.90×10-32.40
SFS-10G-C1900.61（편측）±2.810000125000804.60×10-33.30
SFS-12G-C3400.81（편측）±3.280002150009811.80×10-35.80
SFS-14G-C6000.91（편측）±3.6700039000015621.20×10-38.60

※최고 회전 속도는 동적 균형을 고려하지 않았습니다 .

※관성 모멘트 및 질량은 최대 구멍 지름일 때의 값입니다 .

【치수】

단위 [mm]
형식d1・d2DNLLFLSSFKM
예비구멍최소최대
SFS-05G-C78205632742024511248-M5×22
SFS-06G-C78256840862524610308-M6×25
SFS-08G-C1011358254983026611388-M6×29
SFS-09G-C10113894581063030821428-M8×36
SFS-10G-C1516421046812035301016488-M8×36
SFS-12G-C1819501267814040381123548-M10×45
SFS-14G-C2022601448816045461231618-M12×54

※상기 LS 치수 이상의 제품을 원하시는 경우는 필요 LS 치수 ［mm］를 지시해 주십시오 . 또한 , 상기 LS 치수 미만 , LS ≧ 1000 의 경우는 문의해 주시기 바랍니다 .

※무전해 니켈 도금 (SFS- □ G-C) 사양 LS 치수가 100mm 를 초과할 경우 , 축 삽입 길이는 LF 치수를 초과할 수 없습니다 . 주의하시기 바랍니다 .

※리머볼트 M 의 호칭은 수량 - 나사의 호칭×호칭길이입니다 .

【표준 구멍 지름】

형식표준 구멍 지름　　d1・d2［mm］
891011121415161718192022242528303235384042454850555660
SFS-05G-C●●●●●●●●●●●●
SFS-06G-C●●●●●●●●●●●●●●●
SFS-08G-C●●●●●●●●●●●●●●●●
SFS-09G-C●●●●●●●●●●●●●●●●●
SFS-10G-C●●●●●●●●●●●●●●●
SFS-12G-C●●●●●●●●●●●●●●●
SFS-14G-C●●●●●●●●●●●●●●●●

※● 표시가 있는 난의 내경은 표준 내경으로 대응하고 있습니다 . 자세한 내용은 표준 구멍 가공 규격을 참조하십시오 .

【표준 구멍 가공 규격】

단위 [mm]
구 JIS(2 종 ) 규격 대응신 JIS(H9) 규격 대응신 JIS(JS9) 규격 대응
구멍 지름 호칭구멍 지름（d1・d2）키홈 폭（W1･W2）키홈 높이（T1･T2）고정나사 구멍（M）구멍 지름 호칭구멍 지름（d1・d2）키홈 폭（W1･W2）키홈 높이（T1･T2）고정나사 구멍（M）구멍 지름 호칭구멍 지름（d1・d2）키홈 폭（W1･W2）키홈 높이（T1･T2）고정나사 구멍（M）
공차 H7,H8공차 E9－－ 공차 H7,H8공차 H9－－ 공차 H7,H8공차 JS9－－
88+0.0220－－2-M48H8+0.02203+0.02509.4+0.302-M48J8+0.02203±0.01259.4+0.302-M4
99+0.0220－－2-M49H9+0.02203+0.025010.4+0.302-M49J9+0.02203±0.012510.4+0.302-M4
1010+0.0220－－2-M410H10+0.02203+0.025011.4+0.302-M410J10+0.02203±0.012511.4+0.302-M4
1111+0.0180－－2-M411H11+0.01804+0.030012.8+0.302-M411J11+0.01804±0.015012.8+0.302-M4
1212+0.01804+0.050+0.02013.5+0.302-M412H12+0.01804+0.030013.8+0.302-M412J12+0.01804±0.015013.8+0.302-M4
1414+0.01805+0.050+0.02016+0.302-M414H14+0.01805+0.030016.3+0.302-M414J14+0.01805±0.015016.3+0.302-M4
1515+0.01805+0.050+0.02017+0.302-M415H15+0.01805+0.030017.3+0.302-M415J15+0.01805±0.015017.3+0.302-M4
1616+0.01805+0.050+0.02018+0.302-M416H16+0.01805+0.030018.3+0.302-M416J16+0.01805±0.015018.3+0.302-M4
1717+0.01805+0.050+0.02019+0.302-M417H17+0.01805+0.030019.3+0.302-M417J17+0.01805±0.015019.3+0.302-M4
1818+0.01805+0.050+0.02020+0.302-M418H18+0.01806+0.030020.8+0.302-M518J18+0.01806±0.015020.8+0.302-M5
1919+0.02105+0.050+0.02021+0.302-M419H19+0.02106+0.030021.8+0.302-M519J19+0.02106±0.015021.8+0.302-M5
2020+0.02105+0.050+0.02022+0.302-M420H20+0.02106+0.030022.8+0.302-M520J20+0.02106±0.015022.8+0.302-M5
2222+0.02107+0.061+0.02525+0.302-M622H22+0.02106+0.030024.8+0.302-M522J22+0.02106±0.015024.8+0.302-M5
2424+0.02107+0.061+0.02527+0.302-M624H24+0.02108+0.036027.3+0.302-M624J24+0.02108±0.018027.3+0.302-M6
2525+0.02107+0.061+0.02528+0.302-M625H25+0.02108+0.036028.3+0.302-M625J25+0.02108±0.018028.3+0.302-M6
2828+0.02107+0.061+0.02531+0.302-M628H28+0.02108+0.036031.3+0.302-M628J28+0.02108±0.018031.3+0.302-M6
3030+0.02107+0.061+0.02533+0.302-M630H30+0.02108+0.036033.3+0.302-M630J30+0.02108±0.018033.3+0.302-M6
3232+0.025010+0.061+0.02535.5+0.302-M832H32+0.025010+0.036035.3+0.302-M832J32+0.025010±0.018035.3+0.302-M8
3535+0.025010+0.061+0.02538.5+0.302-M835H35+0.025010+0.036038.3+0.302-M835J35+0.025010±0.018038.3+0.302-M8
3838+0.025010+0.061+0.02541.5+0.302-M838H38+0.025010+0.036041.3+0.302-M838J38+0.025010±0.018041.3+0.302-M8
4040+0.025010+0.061+0.02543.5+0.302-M840H40+0.025012+0.043043.3+0.302-M840J40+0.025012±0.021543.3+0.302-M8
4242+0.025012+0.075+0.03245.5+0.302-M842H42+0.025012+0.043045.3+0.302-M842J42+0.025012±0.021545.3+0.302-M8
4545+0.025012+0.075+0.03248.5+0.302-M845H45+0.025014+0.043048.8+0.302-M1045J45+0.025014±0.021548.8+0.302-M10
4848+0.025012+0.075+0.03251.5+0.302-M848H48+0.025014+0.043051.8+0.302-M1048J48+0.025014±0.021551.8+0.302-M10
5050+0.025012+0.075+0.03253.5+0.302-M850H50+0.025014+0.043053.8+0.302-M1050J50+0.025014±0.021553.8+0.302-M10
5555+0.030015+0.075+0.03260+0.302-M1055H55+0.030016+0.043059.3+0.302-M1055J55+0.030016±0.021559.3+0.302-M10
5656+0.030015+0.075+0.03261+0.302-M1056H56+0.030016+0.043060.3+0.302-M1056J56+0.030016±0.021560.3+0.302-M10
6060+0.030015+0.075+0.03265+0.302-M1060H60+0.030018+0.043064.4+0.302-M1060J60+0.030018±0.021564.4+0.302-M10

JIS 신 규격 P9 JIS B 1301 1996 대응 모터 규격 JIS C 4210 2001 대응
구멍
지름
호칭		 구멍 지름（d1・d2） 키홈 폭（W1･W2） 키홈 높이（T1･T2） 고정나사 구멍（M） 구멍
지름
호칭		 구멍 지름（d1・d2） 키홈 폭（W1･W2） 키홈 높이（T1･T2） 고정나사 구멍（M）
공차 H7，H8 공차 P9 － － 공차 G7，F7 공차 H9 － －
8P 8 +0.0220 3－0.006－0.031 9.4+0.30 2-M4 - - - - -
9P 9 +0.0220 3－0.006－0.031 10.4+0.30 2-M4 - - - - -
10P 10 +0.0220 3－0.006－0.031 11.4+0.30 2-M4 - - - - -
11P 11+0.0180 4－0.012－0.042 12.8+0.30 2-M4 - - - - -
12P 12 +0.0180 4－0.012－0.042 13.8+0.30 2-M4 - - - - -
14P 14+0.0180 5－0.012－0.042 16.3+0.30 2-M4 14N 14+0.024+0.006 5+0.0300 16.3+0.30 2-M4
15P 15+0.0180 5－0.012－0.042 17.3+0.30 2-M4 - - - - -
16P 16+0.0180 5－0.012－0.042 18.3+0.30 2-M4 - - - - -
17P 17+0.0180 5－0.012－0.042 19.3+0.30 2-M4 - - - - -
18P 18+0.0180 6－0.012－0.042 20.8+0.30 2-M5 - - - - -
19P 19 +0.0210 6－0.012－0.042 21.8+0.30 2-M5 19N 19+0.028+0.007 6+0.0300 21.8+0.30 2-M5
20P 20 +0.0210 6－0.012－0.042 22.8+0.30 2-M5 - - - - -
22P 22 +0.0210 6－0.012－0.042 24.8+0.30 2-M5 - - - - -
24P 24 +0.0210 8－0.015－0.051 27.3+0.30 2-M6 24N 24+0.028+0.007 8+0.0360 27.3+0.30 2-M6
25P 25 +0.0210 8－0.015－0.051 28.3+0.30 2-M6 - - - - -
28P 28 +0.0210 8－0.015－0.051 31.3+0.30 2-M6 28N 28+0.028+0.007 8+0.0360 31.3+0.30 2-M6
30P 30 +0.0210 8－0.015－0.051 33.3+0.30 2-M6 - - - - -
32P 32 +0.0250 10－0.015－0.051 35.3+0.30 2-M8 - - -
35P 35 +0.0250 10－0.015－0.051 38.3+0.30 2-M8 - - - -
38P 38 +0.0250 10－0.015－0.051 41.3+0.30 2-M8 38N 38+0.050+0.025 10+0.0360 41.3+0.30 2-M8
40P 40 +0.0250 12－0.018－0.061 43.3+0.30 2-M8 - - - - -
42P 42 +0.0250 12－0.018－0.061 45.3+0.30 2-M8 42N 42+0.050+0.025 12+0.0430 45.3+0.30 2-M8
45P 45 +0.0250 14－0.018－0.061 48.8+0.30 2-M10 - - - - -
48P 48 +0.0250 14－0.018－0.061 51.8+0.30 2-M10 48N 48+0.050+0.025 14+0.0430 51.8+0.30 2-M10
50P 50 +0.0250 14－0.018－0.061 53.8+0.30 2-M10 - - - - -
55P 55 +0.0300 16－0.018－0.061 59.3+0.30 2-M10 55N 55+0.060+0.030 16+0.0430 59.3+0.30 2-M10
56P 56 +0.0300 16－0.018－0.061 60.3+0.30 2-M10 - - - - -
60P 60 +0.0300 18－0.018－0.061 64.4+0.30 2-M10 60N 60+0.060+0.030 18+0.0430 64.4+0.30 2-M10

※고정나사와 키 홈의 위치는 동일 평면상이 되지 못합니다 .

※고정나사는 제품에 부속됩니다 .

※키 홈 가공의 위치 정도는 육안으로 확인합니다 .

※키 홈의 각 허브에 대한 위치 정도가 필요한 경우는 문의해 주십시오 .

※표기 이외의 구멍 가공 규격 치수에 대해서는 권말의 기술 자료를참조하십시오 .

【고정나사의 위치】

형식 단면으로부터의위치［mm］
SFS-05 7
SFS-06 9
SFS-08 10
SFS-09 10
SFS-10 12
SFS-12 12
SFS-14 15
