ML series Technische Daten

ML SERIES

[Specifications and Dimensions]

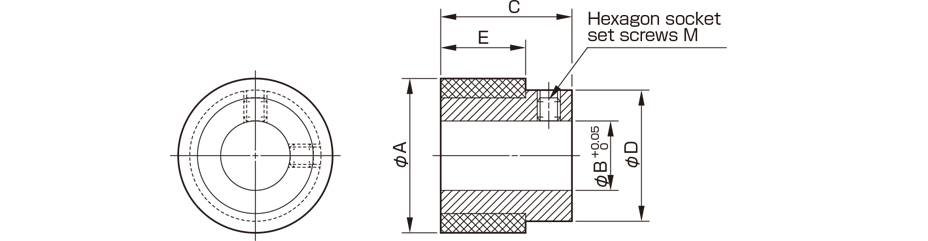

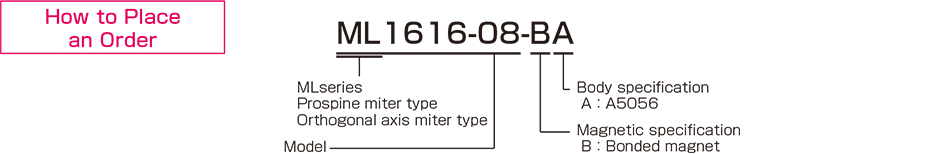

Set ModelTransmission torque [N・m](at.20℃)A [mm]B [mm]C [mm]D [mm]E [mm]M nominalSet mass[kg]
Air gap
0.5mm1mm2mm
ML1616-08-BA0.0200.0150.00816819.51512M30.03
ML2626-08-BA0.1000.0820.0542612202214M40.08
ML3535-12-BA0.2450.1950.1233515303222M50.20


【Download CAD data】

Model No. CAD DATA
ML1616-08 ML1616-08.dxf ML1616-08.step
ML2626-08 ML2626-08.dxf ML2626-08.step
ML3535-12 ML3535-12.dxf ML3535-12.step
